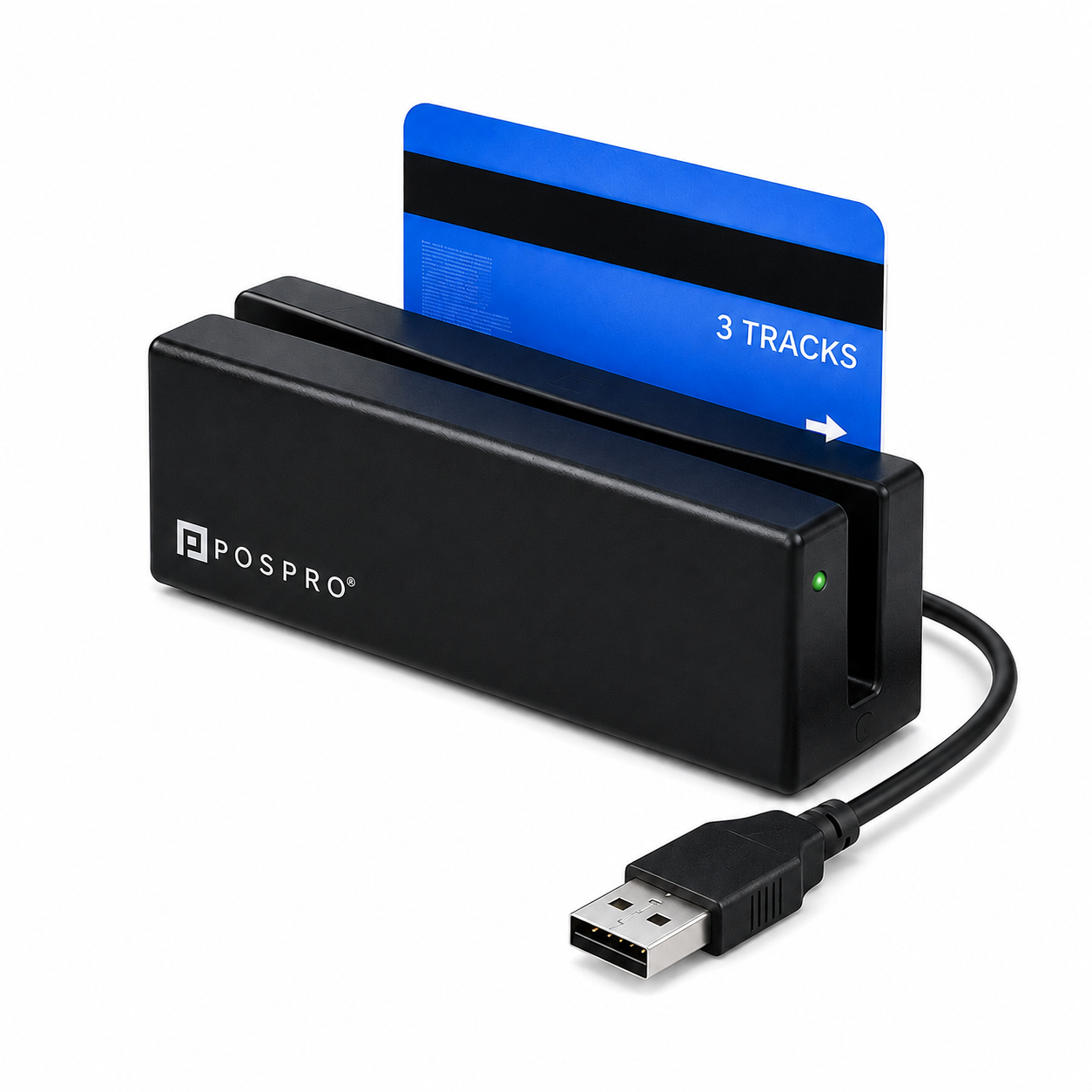

MR-200U Magnetic Stripe Card Reader
Features
• Compatible with Android System
• All 3 tracks can be set to 75/210 BPI
• USB or Serial interface
• Long service life (500,000 card passes)
• Suitable for all ISO7811/7812, ANSI,
AAMVA and CA DMV magnetic cards
Specifications
Dimension 90mm(L) x 26mm(W) x 28mm(H)
Weight 85g(approx.)
Power Supply +5V DV ±5%
Power consumption 40mA (max.)
Operation Locus Indoor use
Card Standard ISO7811/7812
Track Position ISO 1 (IATA)
ISO 2 (ABA)
ISO 3 (MINTS)
Recording Density 210 BPI
75 BPI
210 BPI
Recording Capacity 79 Characters (7bits)
40 Characters (5bits)
107 Characters (5bits)
Interface USB / Serial
Card Thickness Plastic 0.76 ± 0.08mm
Head Function Read only 1.5mm
Operation Speed 10 ~ 150cm/sec
Life of Head 500,000 card passes (1 pass : one swipe)
Error Rate Less than 0.5% (JSE Test card)
Temperature Storage : -30°C to +70°C Operating : -20°C to +70°C
Humidity Storage : 0% to 95% RH Operating : 20% to 90% RH
